Description

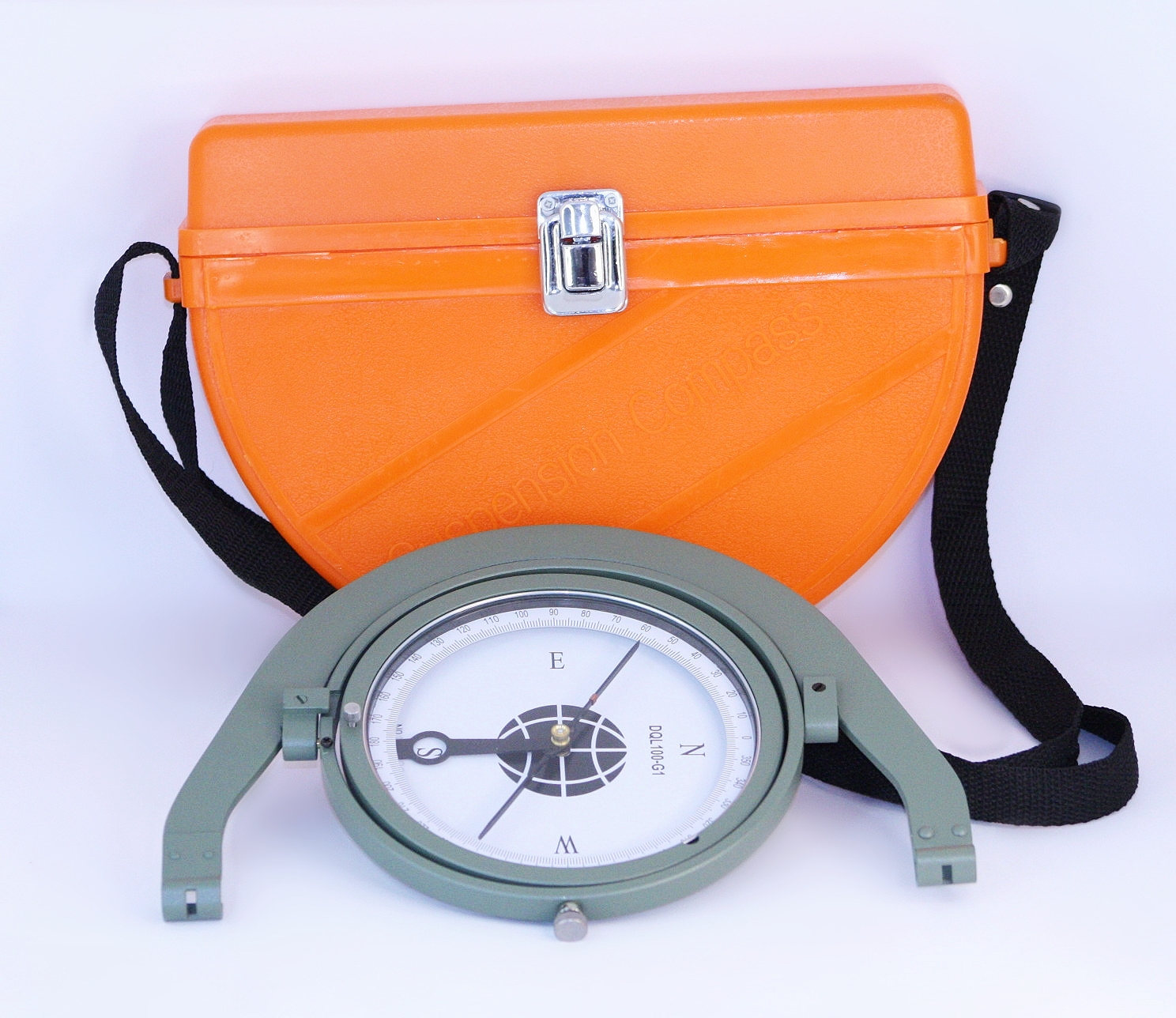

The Suspension Compass Kit is a professional instrument designed to be suspended by a thin string or cord. Traditionally used in the mining industry, it allows for precise field readings of orientation and slope thanks to its gimbaled suspension system. This kit includes a 5-inch dry compass with a lockable needle and 1-degree resolution, a separate gradiometer (or clinometer) with 0.5-degree resolution, plastic locking clips to prevent the instruments from sliding down the string, and a plastic carrying case with a shoulder strap.
SPECIFICATIONS:
➢ Total weight with case: 0.9 kg (2 lbs)
➢ Case dimensions: 25.4 x 17.8 x 5.1 cm
➢ Compass diameter: 5 inches
➢ Compass weight: 445 g
➢ Needle length: 100 mm (4 inches)
➢ Compass accuracy: ±0.5 degrees
➢ Gradiometer resolution: 0.5 degrees
➢ Gradiometer radius: 4 inches
➢ Recommended maximum rope diameter: 4.7 mm (3/16 inches)
FEATURES:
➢ Professional compass for field suspension
➢ Precise readings of orientation and slope
➢ Includes carrying case and locking clips
➢ Ideal for mining, geological, or topographic use
➢ Rugged construction for demanding conditions
